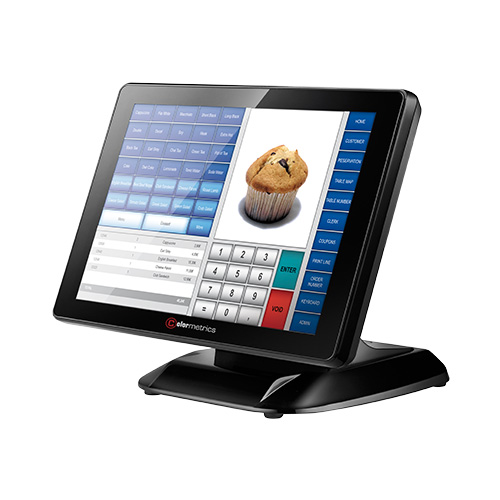

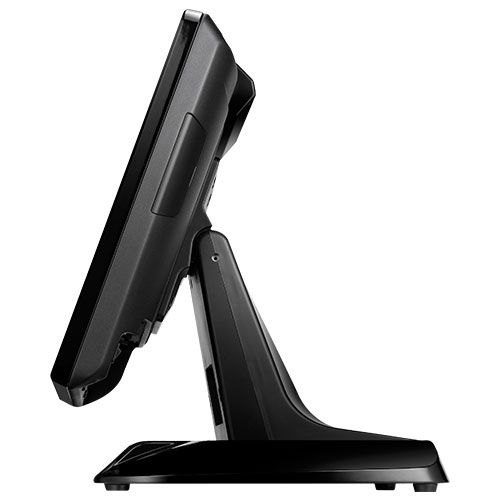

Colormetrics P2000
- Pages
- /
- Oprema
- /
- Integrirana rješenja
- /
- Colormetrics P2000
Colormetrics P2000 serija integriranih računala lako se uklapa u svaku radnu okolinu. Pokreće je učinkovit Intel QuadCore procesor ili najnovija inačica Intel Core i5. Slabija verzija dolazi u izdanju bez ikakvih pokretnih hladnjaka, što može biti presudno za neke radne okoline. Ova serija računala također je vrlo modularna, te se može naručiti sa mnogim dodatnim funkcionalnostima kao što su barkod skener, čitač magnetskih kartica, VFD ili veliki 15″ ekran za kupca. Također dolazi i u dvije boje – crna ili bijela.
Učinkovitost ili visoke performanse?
Izaberite između bešumnog (fanless) Quad Core procesora ili snažnog Intel Core i5 procesora pogodnom za zahtjevne procese.
System
CPU Intel Celeron J1900, Quad-Core, 2.0 GHz (fanless)
System memory 4 GB DDR3 RAM (up to 8 GB)
Chipset BayTrail platform
Compact Flash CFast card support
Hard disk drive 320 GB HDD, optional SSD
Audio On-board
Supported operating systems WS7E / POSReady 7 / Windows
Embedded 8.1 Industry / Windows 10 / Linux
Housing Aluminium
Graphics
Graphics chip Intel HD Graphics
LCD screen size 38.1 cm (15”)
Maximum resolution 1024 x 768 pixels
Brightness 350 cd/m²
Touch screen 5-wire resistive, Projected Capacitive (optional)
Interfaces
USB 3x USB 2.0; 1x USB 3.0
Serial/COM 3x DB9, 1x RJ45
Parallel Available on demand
LAN 1x RJ45 10/100/1000 Base-T
VGA 1x
PS/2 1x
Cash drawer port 1x RJ11 (12 V)
Audio Line-out, mic-in, speaker
PSU
Power adapter 90 watts
Other
Dimensions (WxDxH) 323.6 x 264.2 x 368 mm
Weight 7.6 kg
Operating temperature 0 to 40 °C
Certification CE, FCC, RoHS, IP64 (front panel)
Mount VESA 100 mm
Options
Magnetic stripe reader Choice of MSR (track 1, 2, 3), MSR + iButton reader, MSR + smart card reader +
iButton reader, MSR + smart card reader + fingerprint reader

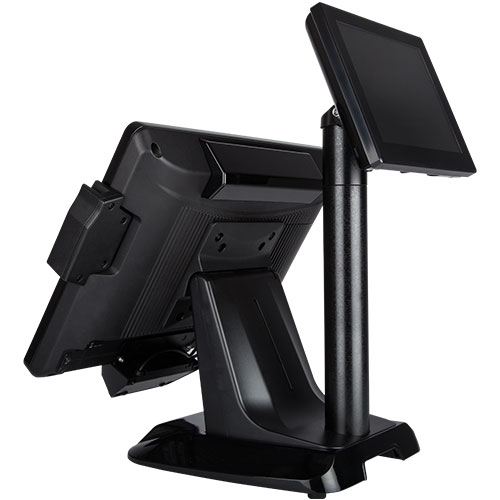

Customer display VFD, 2 x 20 characters (integrated or pole type)

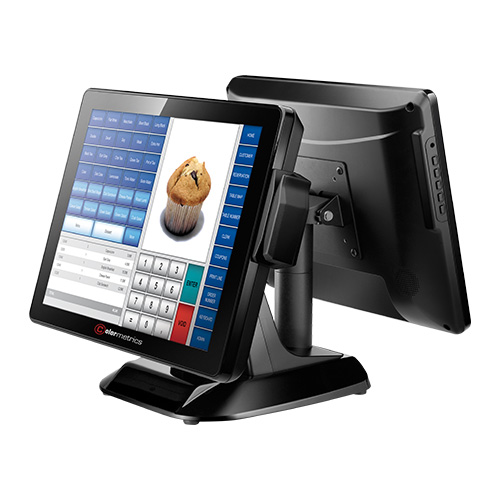

Customer-facing screen 20.3 cm (8”) or 38.1 cm (15”) screen size
Barcode scanner 1D or 2D barcode scanner (optional RFID capability)
Waiter lock iButton (optional RFID capability), Addimat (RS232)
RFID 13.56 MHz (MIFARE), 125KHz
Colour Black, white
UPS Up to 1 hour battery backup
System
CPU Intel Celeron G1820TE (2.2GHz)
Optional: Intel Pentium G3320TE (2.3GHz), Intel Core I3-4330TE (2.4GHz), Intel Core i5-4570TE (2.7GHz)
System memory 4 GB DDR3 RAM (up to 8 GB)
Chipset Intel Haswell
Compact Flash CFast card support
Hard disk drive 320 GB HDD, optional SSD
Audio On-board
Housing Aluminium
Supported operating systems Windows Embedded Standard 7, Windows POSReady 7,
Windows Embedded 8.1 Industry Pro, Linux
Graphics
Graphics chip Intel integrated
LCD screen size 38.1cm (15”)
Maximum resolution 1,024 x 768 pixels
Brightness 350 cd/m²
Touch screen 5-wire resistive, Projected Capacitive (optional)
Interfaces
USB 2x USB 2.0; 2x USB 3.0
Serial/COM 2x DB9, 1x RJ45
Parallel Available on demand
LAN 1x RJ45 10/100/1000 Base-T
VGA 1x
PS/2 1x
Cash drawer port 1x RJ11 (12 V)
Audio Line-out, mic-in, speaker
PSU
Power adapter 150 watts
Other
Magnetic stripe reader Choice of MSR (track 1, 2, 3), MSR + iButton reader, MSR + smart card reader +
iButton reader, MSR + smart card reader + fingerprint reader
Customer display VFD, 2 x 20 characters, (integrated or as pole)
Customer-facing screen 20.3 cm (8”) or 38.1 cm (15”) screen size
Barcode scanner 1D- or 2D-barcode scanner (optional RFID capability)
Waiter lock iButton (optional RFID capability), Addimat (RS232)
RFID 13.56 MHz (MIFARE), 125KHz
Colours Black, white
UPS Up to 1 hour battery back-up
